HDPE Pipes & Fittings
HDPE Mining Pipe
Industrial-grade HDPE pipes engineered for slurry transport, dewatering and tailings lines in mining and heavy industry. PE100 with optional UV-resistant white & black co-extruded layer, abrasion- and chemical-resistant for service in the harshest open-pit and underground environments. Sizes DN50 β DN1200, pressure ratings up to PN25.
- Black HDPE Mining Slurry Pipe

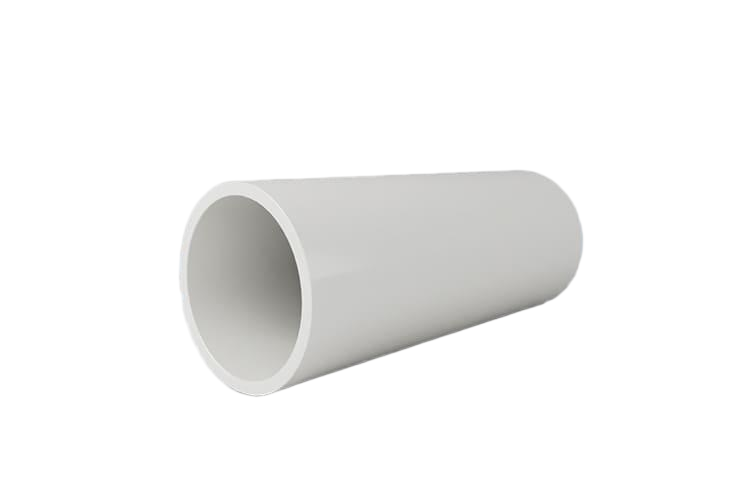

- White HDPE Pipe for Mining Operations

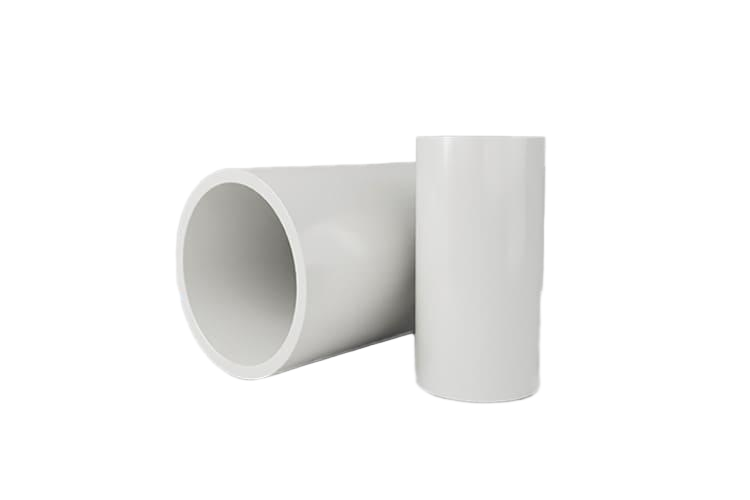

- White HDPE Mining Pipe β Detail

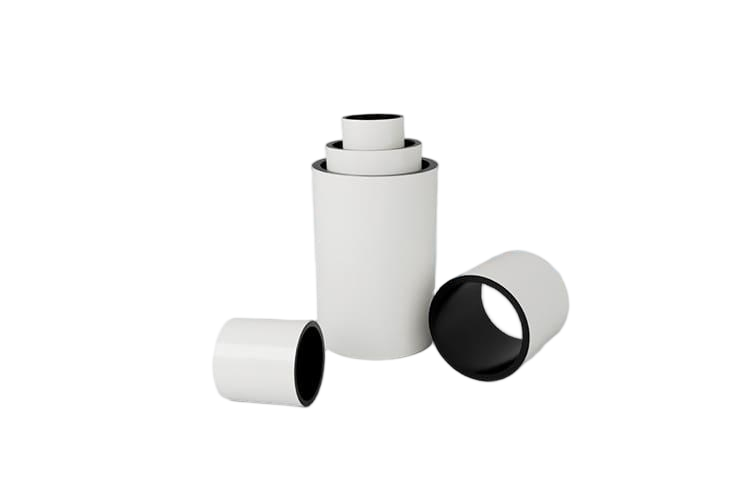

- Co-Extruded HDPE Mining Pipe (White Outer / Black Inner)
- UV-Resistant Co-Extruded HDPE Mining Pipe
- Raw Materials
- PE100 / PE100RC / PE4710 from Borealis, SABIC, Sinopec
- Diameter Range
- DN20 β DN1200 mm (1/2" β 48")
- Pressure Rating
- SDR41 (PN4) β SDR7.4 (PN25)
- Standards
- ISO 4427 / ASTM F714 / AS/NZS 4130 / EN 12201
- Certificates
- WRAS, UL, NSF/ANSI 61, CE, ISO 14001, ISO 9001, ISO 45001
- Color
- Black / White / co-extruded white outer + black inner (custom)
- Length
- 5.8 m / 11.8 m per strip (custom available)
- Applications
- Solution mining, heap leaching, process water, slurry, tailings, dewatering
Datasheet
ISO 4427 β Dimensional Data (PE100)
| DN (mm) | SDR 7.4 / PN25 β Wall (mm) | SDR 11 / PN16 β Wall (mm) | SDR 17 / PN10 β Wall (mm) | SDR 26 / PN6 β Wall (mm) |
|---|---|---|---|---|
| 63 | 8.6 | 5.8 | 3.8 | 2.5 |
| 90 | 12.3 | 8.2 | 5.4 | 3.5 |
| 110 | 15.1 | 10.0 | 6.6 | 4.2 |
| 160 | 21.9 | 14.6 | 9.5 | 6.2 |
| 200 | 27.4 | 18.2 | 11.9 | 7.7 |
| 250 | 34.2 | 22.7 | 14.8 | 9.6 |
| 315 | 43.1 | 28.6 | 18.7 | 12.1 |
| 400 | 54.7 | 36.3 | 23.7 | 15.3 |
| 500 | β | 45.4 | 29.7 | 19.1 |
| 630 | β | 57.2 | 37.4 | 24.1 |
| 800 | β | 72.6 | 47.4 | 30.6 |
| 1000 | β | 90.2 | 59.3 | 38.2 |
| 1200 | β | β | 71.1 | 45.9 |
